Sangoma Digital ISDN PRI Voice Cards

Overview

Sangoma digital telephony boards are part of their award-winning Advanced Flexible Telecommunications hardware product line. They deliver one, two, four, eight, or sixteen spans of optimised voice over T1/E1/J1 with optimum PCI or PCI-Express interface for high performance voice and data applications.

Features

  • T1/E1/J1 span with optimum PCI or PCI-Express interface for high performance voice and data applications
  • Voice line protocols: PRI, CAS, MFC/R2, SS7
  • WAN Protocols: ATM, Frame Relay, X.25, HDLC, PPP, Transparent bitstream, BSC
  • Support for Asterisk®, FreeSWITCH®, and Yate® as well as other Open Source and proprietary PBX, Switch, IVR and VoIP gateway applications
  • Operating Systems: Windows® 2003, Windows® XP, Windows® Server 2008, Windows® Vista, Windows® 7 and Linux (all versions, releases and distributions from 1.0 up)

Ordering Information

A101 Single Span T1/E1/J1

A101

Download Datasheet for the A101 series pdf
Sangoma support Wiki for A101 series link
View product Demo

SKU Number of Spans PCI Express? Echo Cancellation? Full Duplex Data Transfer Rate Max. Operational Power
A101 1 no no 2.048 Mbps or up to 30 voice calls 3W (0.6A @ 5V)
A101D 1 no yes 2.048 Mbps or up to 30 voice calls 3W (0.6A @ 5V)
A101DE 1 yes yes 2.048 Mbps or up to 30 voice calls 2.5W
(0.76A @ 3.3V)
A101E 1 yes no 2.048 Mbps or up to 30 voice calls 2.5W
(0.76A @ 3.3V)

A102 Dual Span T1/E1/J1

A102

Download Datasheet for the A102 series pdf
Sangoma support Wiki for A102 series link
View product Demo

SKU Number of Spans PCI Express? Echo Cancellation? Full Duplex Data Transfer Rate Max. Operational Power
A102 2 no no 4.096 Mbps or up to 60 voice calls 3.8W
(0.76A @ 5V)
A102D 2 no yes 4.096 Mbps or up to 60 voice calls 3.8W
(0.76A @ 5V)
A102DE 2 yes yes 4.096 Mbps or up to 60 voice calls 3.2W
(0.97A @ 3.3V)
A102E 2 yes no 4.096 Mbps or up to 60 voice calls 3.2W
(0.97A @ 3.3V)

A104 Quad Span T1/E1/J1

A104

Download Datasheet for the A104 series pdf
Sangoma support Wiki for A104 series link
View product Demo

SKU Number of Spans PCI Express? Echo Cancellation? Full Duplex Data Transfer Rate Max. Operational Power
A104 4 no no 8.192 Mbps or up to 120 voice calls 5W (1A @ 5V)
A104D 4 no yes 8.192 Mbps or up to 120 voice calls 5W (1A @ 5V)
A104DE 4 yes yes 8.192 Mbps or up to 120 voice calls 4W
(1.2A @ 3.3V)
A104E 4 yes no 8.192 Mbps or up to 120 voice calls 4W
(1.2A @ 3.3V)

A108 Octal Span T1/E1/J1

A108

Download Datasheet for the A108 series pdf
Sangoma support Wiki for A108 series link
View product Demo

SKU Number of Spans PCI Express? Echo Cancellation? Full Duplex Data Transfer Rate Max. Operational Power
A108 8 no no 16.4 Mbps or up to 240 voice calls 7.5W
(1.5A @ 5V)
A108D 8 no yes 16.4 Mbps or up to 240 voice calls 7.5W
(1.5A @ 5V)
A108DE 8 yes yes 16.4 Mbps or up to 240 voice calls 5.5W
(1.67A @ 3.3V)
A108E 8 yes no 16.4 Mbps or up to 240 voice calls 5.5W
(1.67A @ 3.3V)

A116 16-Span T1/E1/J1

A116DE

Download Datasheet for the A116 series pdf
Sangoma support Wiki for A116 series link

SKU Number of Spans PCI Express? Echo Cancellation? Full Duplex Data Transfer Rate Max. Operational Power
A116DE 16 yes yes 32.8 Mbps or up to 480 voice calls 9W (2.42A @ 3.3V + 0.083A @ 12V)
A116E 16 yes no 32.8 Mbps or up to 480 voice calls 9W (2.42A @ 3.3V + 0.083A @ 12V)
SPEC-A116+PNLKIT

SPEC-A116+PNLKIT: 1U rack mountable breakout panel with 16 RJ45 ports: contains a cable with a 68-pin connector at one end and 16 RJ45 female connectors on a rack mountable faceplate at the other end.


CBL-649

CBL-649: 6-feet punch down cable with a 68-pin connector at one end and loose 68 colour coded wires at the other end. Can be punched down or wire wrapped with the end-users connector block of choice.

Support & Downloads

Technical details

Support Links

Warranty

  • A series products carry lifetime warranty on parts and labour (with product registration)
  • B series products carry a 5 year warranty on parts and labour (with product registration)
  • All Sangoma boards come with a 30-day "no questions asked" returns policy when purchased through ProVu

Media downloads

Sanagoma A101E/A101DE Single Span PCIe Digital Card
High Resolution | Web | Thumb
Sanagoma A102/A102D 2-Span Digital Card
High Resolution | Web | Thumb

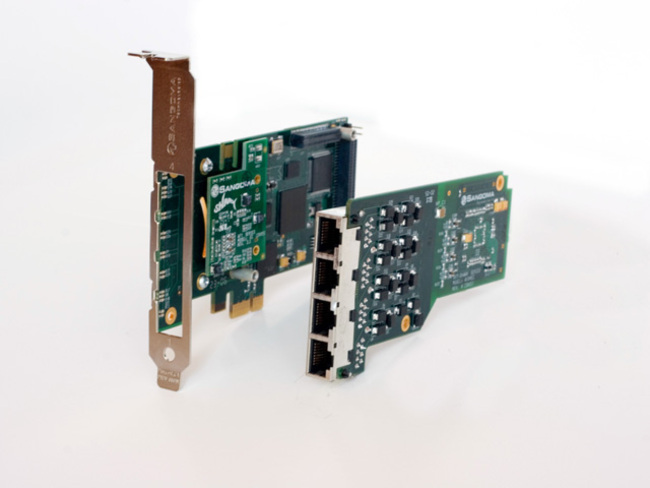

Sanagoma A104E/A104DE 4-Span PCIe Digital Card
High Resolution | Web | Thumb
Sanagoma A116E/A116DE 16-Span PCIe Digital Card
High Resolution | Web | Thumb
Sanagoma A116: 1U Rackmountable Breakout panel with 16 RJ45 ports
High Resolution | Web | Thumb
