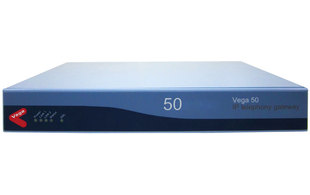

Sangoma Vega 50 - Analogue or BRI Media Gateway
The Vega 50 media gateway connects a range of legacy telephony equipment, including PBXs, ISDN telephones, the ISDN, analog phones & the PSTN to IP networks. The Vega 50 media gateway supports up to 10 analog ports, or 8 basic rate ISDN channels on 4 physical interfaces.
Features
- 2–10 Ports, analogue or BRI
- Voice, FAX and Modem Support
- Flexible Call Routing for Fallback and Least Cost Routing
- Emergency PSTN Backup
- Interoperability with a Wide Range of Legacy and IP Equipment
- SIP and H.323 support
If you use a BRI interface model,they can be independently configured as network side or terminal side. The Vega 50 media gateway can, therefore, be connected to both a PBX & the ISDN simultaneously. This configuration provides:
- No disruption to the configuration of existing equipment
- Flexibility & choice for call routing
ENP – Enhanced Network Proxy (Optional)
This option enables continuity of service during WAN/SIP outage and may be configured to operate in a number of ways including:
- Standalone proxy
- IP device survivability
- IP device call routing
- Emergency call routing
- SIP to SIP call routing
Open, Non-Proprietary Interfaces
Vega 50 media gateways support ETSI BRI. Analogue Vega 50 media gateways support standard loop start signalling. Vega 50 media gateways have proven interoperability with a wide range of existing telecommunications and VoIP equipment. All VegaStream gateways can support SIP, H.323 & T.38 FAX. The gateways can be configured for different country requirements, such as tones and line impedance.
Lifeline PSTN Backup
Vega 50 media gateway variants equipped with FXS ports are also fitted with two FXO ports. When powered the Vega can route calls to or from these two FXO ports. Under power failure conditions the two FXO ports provide a hard-wired bypass to two FXS ports allowing PSTN calls to be made even under this failure condition.
View online Trade Pricing information for all products using ProSys
If you don't have a username and password fill in our Reseller application form and a member of our sales team will get back to you.
If you have forgotten your username and or password please inform us by e-mailing contact@provu.co.uk.
Models Available
The following gateway configurations are available as standard:
- ANALOGUE
- VS0114: 4 FXS + 2 FXO
- VS0113: 8 FXS + 2 FXO
- VS0119: 4 FXO
- VS0118: 8 FXO
- BRI / ISDN2
- VS0117: 2 BRI (4 channels) with pin switching. No phantom power
- VS0116: 4 BRI (8 channels) with pin switching. No phantom power
