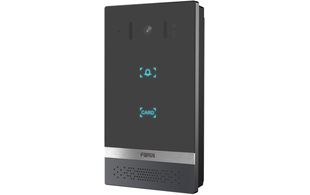

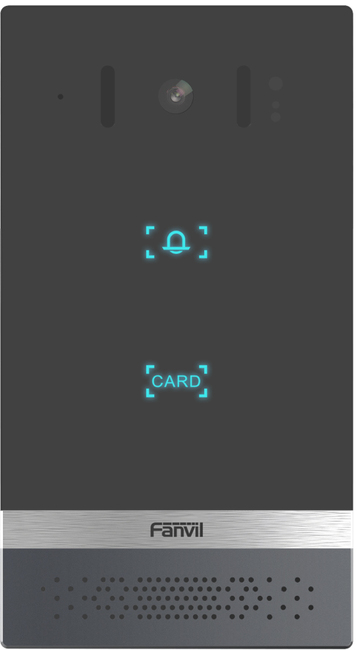

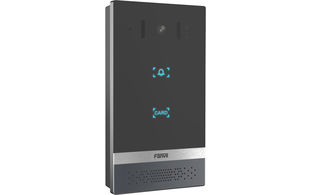

Fanvil i61

Overview

Featuring a single speed-dial touch button and an elegant design, the Fanvil i61 offers a simple to use IP intercom. With a high protection IP66 and IK07 rating, the Fanvil i61 is waterproof, dustproof and anti-vandal making it suitable for use in outdoor environments.

With a 2 Mega-pixel camera and rich input and output interfaces, the Fanvil i61 can be easily integrated with other security devices to create the solution you require. For further customisation users of the Fanvil i61 can select from the following access control methods:

  • Indoor Switch
  • NFC
  • Timed Open Doors
  • RFID/IC Cards
  • Remote DTMF

For users looking for a physical button option, discover the Fanvil i62 IP intercom.

Features

  • Features a high protection level of IP66 and IK07
  • Suitable for installation in outdoor areas and harsh environments
  • Housed in an aluminium alloy casing and features 1 touch button with speed-dial
  • Supports the use of RFID/IC cards, NFC, Indoor Switch, Remote DTMF and Timed Open Door
  • Wall mountable
  • Built-in 2 Mega-pixel wide-angle camera: 120° (H), 60° (V) with infrared night-vision feature
  • Compatible with the ONVIF protocol
  • Built-in 3 short-in detect ports and 2 short-out control ports, can be integrated with induction loop antenna
  • Built-in maximum 128GB capacity TF card slot for image storage
  • HD voice quality with built-in 2.5W speaker and acoustic echo canceller

Ordering Information

Accessories

Support & Downloads

Technical details

Related blog posts

What's in the box

  • i61 Door intercom with wall mount bracket
  • Access cards x 2
  • Quick start guide
  • Installation screws and plugs
  • Drill template

Warranty

This product is supplied with a 2 year warranty.
