Fanvil VIK-01 Video Intercom Kit

Overview

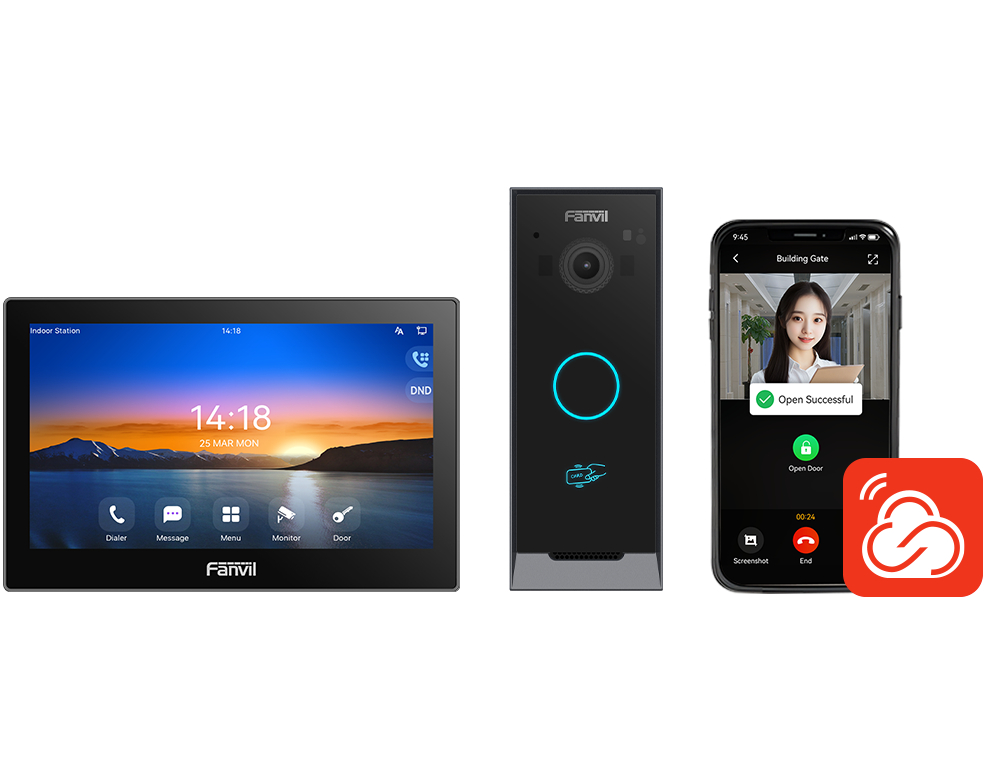

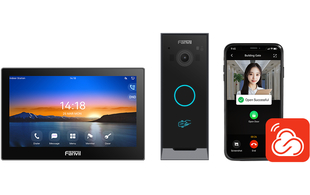

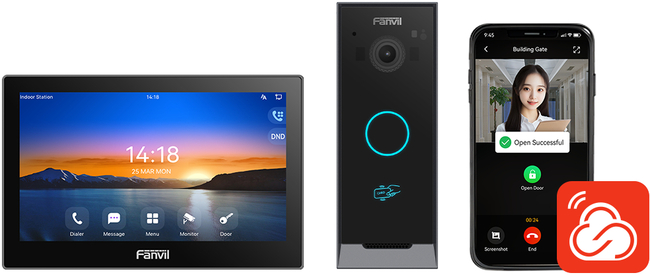

The Fanvil VIK-01 Video Intercom Kit brings reliable, user-friendly access control to villas and single-family homes. Combining the i504W SIP Indoor Station, the i60 Video Door Phone, and the Fanvil Link App to deliver clear HD video calling, responsive two-way audio, and effortless day-to-day operation over 2.4G and 5G Wi Fi. Users can view visitors, talk in real time, and unlock doors from the indoor station or their smartphone for convenience at home or on the move.

Deployment is fast with simple power and network connections, giving a true plug-and-play setup. The kit supports one-touch calling, multiple unlocking methods, and CCTV integration, so door phone camera footage can be monitored on both the indoor station and mobile devices. With remote door opening anytime, anywhere, and flexible access options to suit different households, the VIK-01 provides a neat, modern upgrade to residential security and convenience.

Features

  • i504W
    • 7-inch colour touch screen
    • Built-in 2W speaker with AEC
    • Supports 6 SIP lines
    • Supports visual intercom and remote access control
    • Real-time monitoring of door phone and cameras
    • Built-in 2.4G/5G Wi-Fi
    • 8 alarm input interfaces
    • Wall-mounted
    • PoE support
    • Supplied with a 2 year warranty as standard
  • i60
    • Features a high protection level of IP65
    • Suitable for installation in outdoor areas and harsh environments
    • Features 1 touch button with speed-dial
    • Supports the use of ID/IC cards, DTMF Code, BLE and Remote Door Opening
    • Wall mountable
    • Built-in 2 Mega-pixel wide-angle camera: 120° (H), 60° (V) with infrared night-vision feature
    • Compatible with the ONVIF protocol
  • Quick deployment with Plug and play
  • Multiple door access methods
  • Remote door opening with Fanvil app
  • Supports one touch calling
  • CCTV integration

Ordering Information

Accessories

Support & Downloads

Technical details

What's in the box

  • Quick Installation Guide
  • i504W Video Answering Panel:
  • 3 x 2 Pin cable
  • 12 x Screws
  • 4 x Wall Plugs
  • Mounting Template
  • Wall-Mount Bracket
  • i60 Video Door Phone:
  • Mounting Template
  • Cable Outlet Cover
  • Rain Cover
  • Bracket
  • Connector
  • 12 x Screws
  • 4 x Wall Plugs

Warranty

This product is supplied with a 2 year warranty.
