Overview

Explore the TP-Link OMADA Indoor/Outdoor Wireless Bridge Kits designed to transmit up to 5KM away. By delivering reliable PtP / PtMP connectivity, it's perfect for farms, additional offices, car parks, stately homes and parks, and other locations which have remote outdoor spaces.

What is a Bridge Kit?

A bridge kit is a long-range wireless solution designed to connect 2 or more locations without the need for physical cables. Operating on the most optimised bandwidth available, bridge kits enable stable high-speed communication across distances ranging from 1 - 5 km.

Can a Bridging Kit be Used Indoors or Outdoors?

TP Link Bridge Kits are built for indoor and outdoor use. The kit comes preconfigured for instant deployment, as the deivces automatically pair as soon as they are switched on.

Where Would I Use a Bridge Kit?

The equipment has been engineered to suit a wide range of environments, including rapid installations in environments such as surveillance systems, remote buildings, construction sites, and algricultarl sites including crop and animal farms as well as liveries and stables. The Omada Software Controller offers a free, no-license solution for managing multiple sites or hundreds of devices, with advanced features like customisable guest authentication, load balancing, and rogue AP detection to ensure network stability and security. Whether cloud-based, hardware, or software, OMADA Controllers provide the flexibility and power to keep your business network running smoothly and efficiently.

What is OMADA?

The TP-Link Omada range is an enterprise-grade networking solution tailored for Managed Service Providers (MSPs), offering a unified platform for seamless remote management. Its powerful controllers, available as hardware-based, self-hosted software, or cloud-hosted, enable easy oversight of devices. Omada’s product suite—advanced routers, switches and access points—integrates into a scalable Software Defined Networking (SDN) solution with 100% centralised cloud management. Ideal for small and medium-sized enterprises, Omada ensures exceptional connectivity, enhanced security, and reliable service delivery from a single, intuitive interface.

TP-Link OMADA Bridge Access Points - Broadcast

Model	Frequency	Max Wireless Speed	Max Transmission Distance	Beamwidth (Vertical x Horizontal)	Antenna Gain	Centralised Cloud Management	Standalone Management	Hosted By	Registration and Download

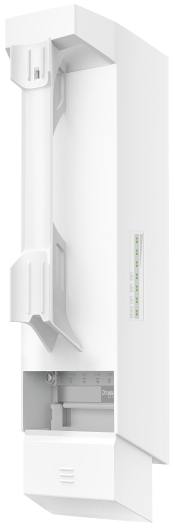

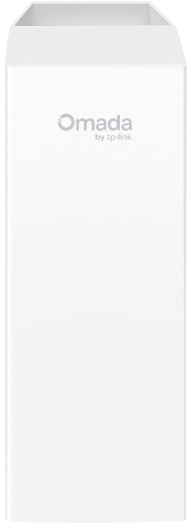

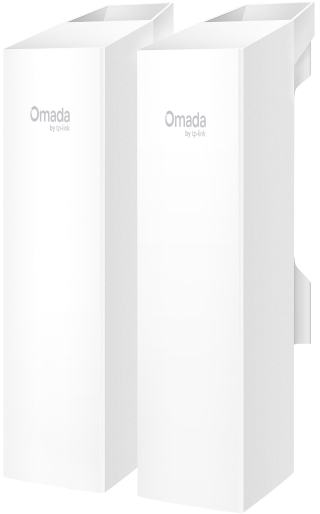

OMADA EAP211-BridgeKit	5GHz	AC867 Mbps	0.62 mi / 1 km	70°x70°	7.0 dBi	Omada App; Omada Cloud Web UI	Omada App; Local Management Web UI	TP-Link	Cloud Platform Sign Up

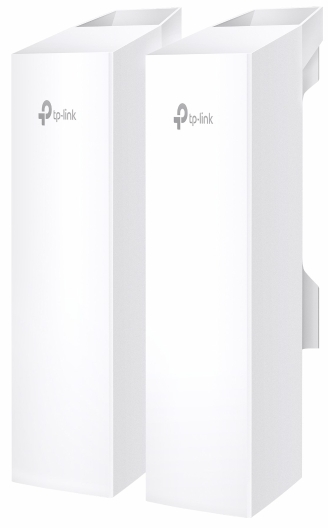

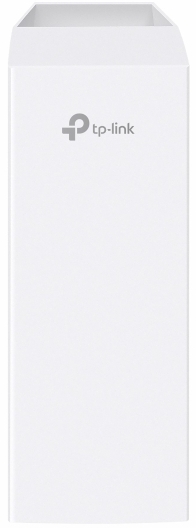

OMADA EAP215-BridgeKit	5GHz	AC867 Mbps	3.1 mi / 5 km	35°x35°	11.0 dBi	Omada App; Omada Cloud Web UI	Omada App; Local Management Web UI	TP-Link	Cloud Platform Sign Up

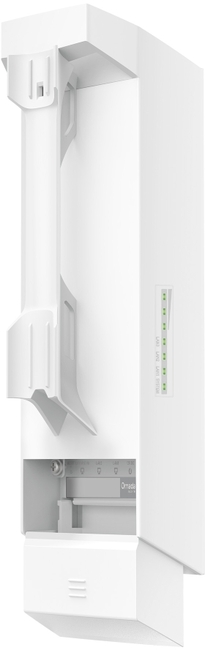

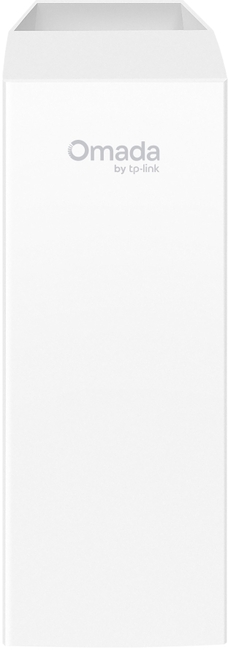

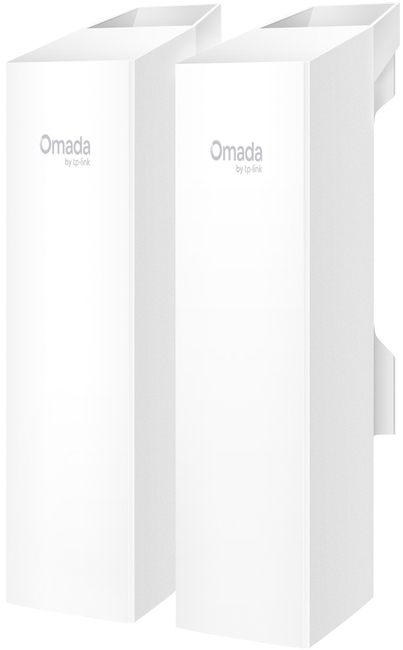

OMADA EAP100-BridgeKit	2.4GHz	300Mbps	500m	70°x70°	8.0 dBi	Omada App; Omada Cloud Web UI	Omada App; Local Management Web UI	TP-Link	Cloud Platform Sign Up

TP-Link OMADA Bridge Access Points - Hardware

Model	Ethernet Ports	Power Supply Method	Mount	Weatherproof Enclosure	Operating Temperature	Lightning Protection	Wind Resistance

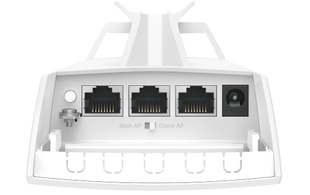

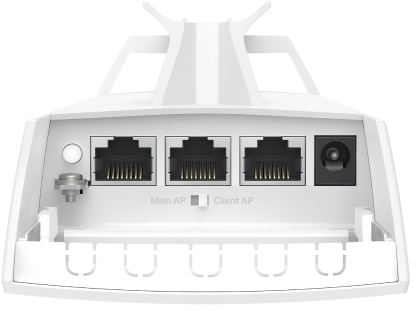

OMADA EAP211-BridgeKit	3x Gigabit	12V DC / 24V Passive PoE (Passive PoE adapter included)	Pole (included) \| Wall (optional)	IP65	-40℃~70℃ (-40℉~158℉)	6 kV (access point and included power adapter)	Yes

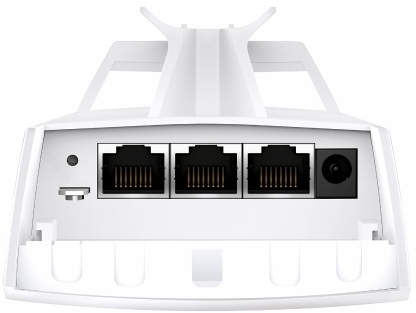

OMADA EAP215-BridgeKit	3x Gigabit	12V DC / 24V Passive PoE (Passive PoE adapter included)	Pole (included) \| Wall (optional)	IP65	-40℃~70℃ (-40℉~158℉)	6 kV (access point and included power adapter)	Yes

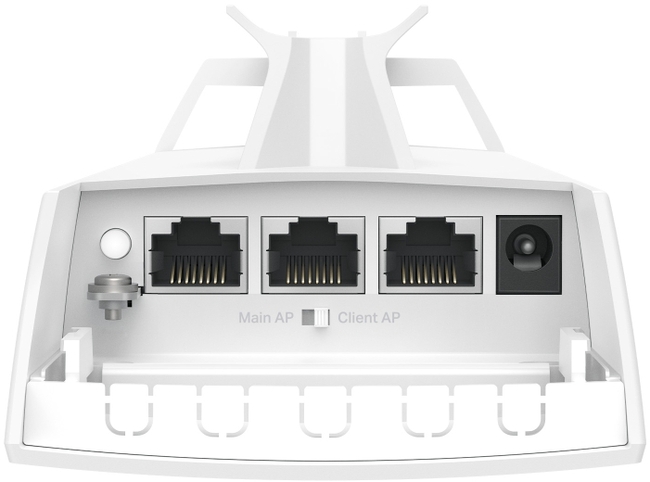

OMADA EAP100-BridgeKit	3x	12V DC / 24V Passive PoE (Passive PoE adapter included)	Pole (included) \| Wall (optional)	IP65	-40℃~70℃ (-40℉~158℉)	6 kV (access point and included power adapter)	Yes

Ordering Information

Bridge Kit Access Points

Are you a telecoms / IT reseller, ITSP or installer?

For access to discounted trade pricing, simply register and become a ProVu Reseller today.

Become a Reseller
Already have an account? log in for trade pricing
TP-Link Omada Weatherproof Outdoor EAP610 Access Point

Code: EAP610-Outdoor MPN: EAP610-Outdoor Availability: In stock
RRP £145.00+VAT
