Yealink MVC400

Overview

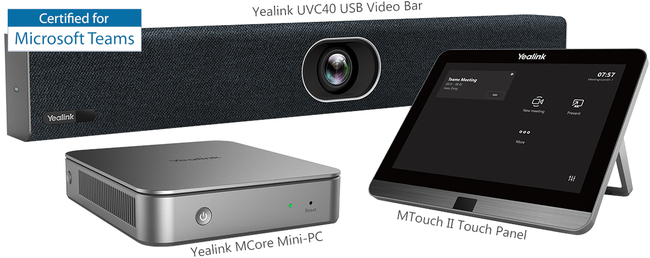

Get started with the 2nd Generation Microsoft S4B/Teams room video conferencing System. Yealink's MVC400 video solution combines the advanced Mtouch II and MCore mini-PC with the progressive UVC40 all in one USB video bar. Providing the very best video and voice experience, the MVC400 features an integrated AI-powered camera, microphone and speakers. Designed to be a complete package for small meeting rooms.

With the familiar Microsoft Teams Rooms interface, users can simply walk into a conference room and join meetings at the touch of a button. Thanks to its intelligent AI technology, the UVC40 not only supports group framing according to the number and position of the participants, but it will automatically zoom in on the speaker, helping to maintain focus in busy meetings.

Features

    Yealink UVC40 USB Video Bar

  • 20 MP camera
  • 8x e-PTZ camera
  • 133 degree field of view
  • Auto framing
  • Speaker Tracking
  • AI Face Enhancement
  • Built-in 8 MEMS microphone array
  • Noise proof & echo cancellation technology
  • Yealink Microphone port (RJ-45)
  • 1 x USB 3.0 Type-B & 1 x USB 2.9 Type-A
  • 3x digital zoom
  • 1 x 2.5m USB 2.0 cable

    Yealink MCore Mini-PC

  • 8th-gen Intel QUAD-CORE i5
  • Memory: 8GB (2 x 4GB)
  • 128GB SSD
  • 2 x HDMI video output with CEC supported
  • Bluetooth and Wi-Fi
  • 1 x Yealink VCH port (RJ45), connect to MTouch II
  • 4 x USB 3.0 Type-A
  • 1 x 10/100/1000M Ethernet port
  • 1 x Power port
  • 1 x Security lock slot
  • Integrated cable management

    Yealink MTouch II Touch Panel

  • 8-inch IPS screen
  • 1280 x 800 resolution
  • 10-point capacitive touch screen
  • 3.5mm headset jack
  • Human Motion Sensor
  • Angle adjustable bracket (28 - 50 degree)
  • Support wired and wireless content sharing
  • Built-in WiFi AP for Yealink wireless presentation device
  • HDMI/USB-C video input

Ordering Information


Accessories


Support & Downloads

Technical details

What's in the box

  • 1 x MCORE consisiting of:
  • MCORE unit
  • Mains adapter with UK cable (19V 4.74A)
  • HDMI cable x 2
  • 3M velcro x 2
  • Wall mount bracket
  • Fitting kit (screws and rawplugs)
  • Mini cross-head screwdriver
  • Quick start guide
  • 1 x Mtouch 2 consisting of:
  • Mtouch 2 unit
  • Wall mount bracket with fixings
  • USB type C to HDMI cable
  • 7.5M Network cable
  • Quick start guide
  • 1 x UVC40 consisting of:
  • UVC40 Video conferencing endpoint
  • Mains adapter with UK cable (48V 0.7A)
  • 2.5M USB-A to USB-B cable
  • VRC20 remote control with 2 x AAA batteries
  • Mounting bracket and fittings
  • Velcro cable tidies x 5
  • Silicone pads x 2
  • Wireless Presentation Pod holder
  • Quick start guide

Warranty

This product comes with a Lifetime Warranty, this warranty covers selected Yealink products purchased from ProVu from the date of purchase until 12 months after the official end-of-life date.
