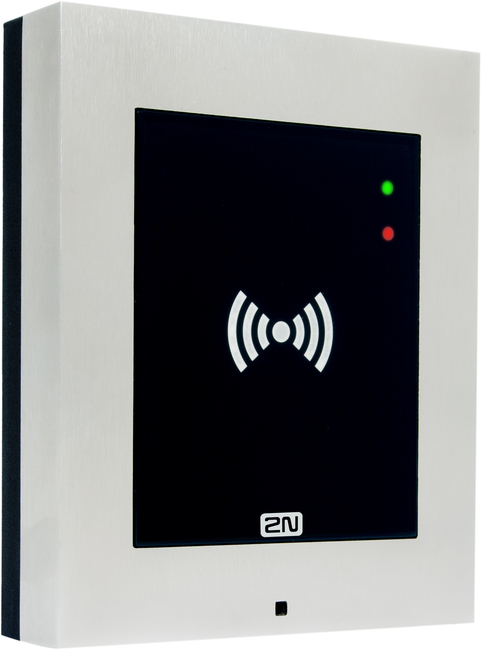

2N® Access Unit

Overview

The 2N® Access Unit is a standalone network access control unit which can be powered via PoE. It allows organisations to monitor and control or restrict movement of people into and within buildings. The device can be easily installed on to a wall and connected to a LAN network, with configuration easily accessible via a web interface. The 2N Access unit is designed in tandem with the IP Verso range and fully integrates with 2N's intercom range including the IP Vario, IP Force and IP Safety. The inbuilt relay, I/O and VBUS connector allow you to connect Verso accessories such as an infopanel, door lock, exit button or open door detector - you can even add secondary authentication modules for dual authentication.

The 2N® Access Unit comes in a variety of models:

• 125kHz RFID - 9160341
• 13.56MHz RFID with NFC - 9160342
• Touch-sensitive keypad - 916032
• Fingerprint reader - 916031
• 125kHz and 13.56MHz RFID with NFC - 9160334
• For the secured version, order 91604334-S
• 125kHz and 13.56MHz RFID with NFC and Bluetooth - 9160335
• For the secured version, order 9160335 - S
• 125kHz and 13.56MHz RFID with NFC and touch-sensitive keypad - 9160336
• For the secured version, order 9160336-S

Please note: on any units where NFC is available, the NFC licence will be required for activation, order code: 916012.

For a Bluetooth-only option, the Access Unit 1.0 Bluetooth remains available - 916013.

The 2N® Access Unit is primarily intended for firms that need to control the movement of people in a building. It offers them a simple, reliable solution at an affordable price. It will also be ideal for organisations that rent out part of their premises and need to resolve access authorisation to various parts of the building.

For a slimline option, there's also the Access Unit M, which is specially designed to be installed on to door frames.

Discover how the 2N® Access Unit helped Eastern Voice and Data to ensure security in schools: FIND OUT MORE IN OUR CASE STUDY

Did you know we offer an Advanced Replacement Service for this item? Simply speak with a member of our team today to discover how we can enhance your cover and protect you from the potential disruption faulty devices may cause. Find out more today.

Features

• Choice of model variations: 125kHz RFID, 13.56MHz RFID with NFC, Bluetooth, Touch-sensitive keypad, Fingerprint reader
• Setup and manage via web interface
• Powered by PoE
• IP54 rating
• Choice between flush or on wall mounting
• Choice between brushed nickel and black frame colours
• Ideal for controlling or restricting movement of people within a building
• Excellent price to performance ratio
• New in Access Unit 2.0: direct RJ45 plug connection

Technical Specifications

• LAN :10/100BASE-TX s Auto-MDIX, connecting block or RJ-45 pigtail
• Power : 12 V ±15% / 2 A DC or POE 802.3af
• Passive switch: make and break contact, max. 30 V / 1 A AC/DC
• Active switch output: 8 to 12 V DC according to power source (PoE: 10 V; adapter: source voltage minus 2 V), max 400 mA
• Three inputs: Can be used in passive or active mode (-30 V to +30 V DC)

Ordering Information

•


  2N Access Unit - RFID 125kHz

  Code: 916009 MPN: 916009 Availability: End of Life

  RRP £289.17+VAT
•


  2N Access Unit - Bluetooth

  Code: 916013 MPN: 916013 Availability: In Stock

  RRP £396.36+VAT
•


  2N Access Unit - Touch Keypad

  Code: 916016 MPN: 916016 Availability: End of Life

  RRP £258.29+VAT
•


  2N Access Unit - Fingerprint Reader

  Code: 916019 MPN: 916019 Availability: End of Life

  RRP £503.95+VAT

• Are you a telecoms / IT reseller, ITSP or installer?

  For access to discounted trade pricing, simply register and become a ProVu Reseller today.

  Become a Reseller

  Already have an account? log in for trade pricing

Accessories

•

  Tenda PoE30G-AT Gigabit PoE Injector

  Code: POE30G-AT MPN: POE30G-AT Availability: End of Life

  RRP £20.00+VAT
•

  2N Security Relay Switch

  Code: 9159010 MPN: 9159010 Availability: In stock

  RRP £72.63+VAT
•

  USB RFID Reader - 13.56MHz

  Code: 9137421E MPN: 9137421E Availability: Please call

  RRP £224.32+VAT
•

  2N USB Bluetooth Reader

  Code: 9137422E MPN: 9137422E Availability: Order on demand

  RRP £27.71+VAT
•

  NFC licence for NFC-capable Access Units only

  Code: 916012 MPN: 916012 Availability: End of Life

  RRP £19.51+VAT
•

  Surface Installation Frame for 1 Module (Recommended with 9155061)

  Code: 9155021 MPN: 9155021 Availability: Please call

  RRP £46.36+VAT
•

  Surface Installation Frame for 1 Module (Black) (Recommended with 9155061)

  Code: 9155021B MPN: 9155021B Availability: In stock

  RRP £46.36+VAT
•

  Flush Installation Frame for 1 Module (Requires 9155014)

  Code: 9155011 MPN: 9155011 Availability: Please call

  RRP £67.97+VAT
•

  Flush Installation Frame for 1 Module (Black) (Requires 9155014)

  Code: 9155011B MPN: 9155011B Availability: In stock

  RRP £67.97+VAT
•

  Flush Mount Box for 1 Module (Requires 9155011(B))

  Code: 9155014 MPN: 9155014 Availability: In stock

  RRP £22.63+VAT
•

  Backplate to surface-mount 1 Verso module or Access Unit (1x1)

  Code: 9155061 MPN: 9155061 Availability: In stock

  RRP £48.47+VAT
•

  2N USB Fingerprint Reader

  Code: 9137423E MPN: 9137423E Availability: In stock

  RRP £190.42+VAT
•

  2N Proximity Keyfobs Mifare (13.56MHz)

  Code: 9134174 MPN: 9134174 Availability: In stock

  RRP £3.05+VAT
•

  I/O Module for 2N Verso and Access Unit

  Code: 9155034 MPN: 9155034 Availability: In stock

  RRP £90.00+VAT
•

  Wiegand Interface Module for 2N IP Verso and Access Unit

  Code: 9155037 MPN: 9155037 Availability: In stock

  RRP £75.59+VAT
•

  Backlit Infopanel Module for 2N Verso and Access Unit

  Code: 9155030 MPN: 9155030 Availability: In stock

  RRP £106.10+VAT
•

  Mechanical Keypad Module for 2N Verso and Access Unit (Brushed Nickel)

  Code: 9155031 MPN: 9155031 Availability: In stock

  RRP £234.49+VAT

• Are you a telecoms / IT reseller, ITSP or installer?

  For access to discounted trade pricing, simply register and become a ProVu Reseller today.

  Become a Reseller

  Already have an account? log in for trade pricing

Applications

• 2N® Access Commander - access control and management software for 2N access unit and IP intercoms
• 2N® IP Network Scanner - application for detecting 2N IP intercoms and access control units on the network
• 2N® Mobile Key - application that convert your smartphone to the access card

Licences and Upgrades

• 2N® IP Licence - NFC Licence (916012)

The 2N® Enhanced Integration and Security Licences come unlocked as standard on the Access Unit. Find out more about 2N's Licences.

Support & Downloads

Technical details

• Data sheet
• Access Unit 2.0 Data sheet
• Installation Manual
• Downloads including manuals and firmware

Useful links

• CASE STUDY: Ensuring Security in Schools
• Door Locking and door release components
• 2N® IP interoperable devices
• IP intercoms usage scenarios
• 2N® IP Licensed Features
• My2N App

What's in the box

• Access Unit
• Fixings
• Quick install manual

Warranty

This product comes with a 3 year manufacturer's warranty. An additional 1 or 2 years extended warranty can be purchased for up to 5 years warranty.
